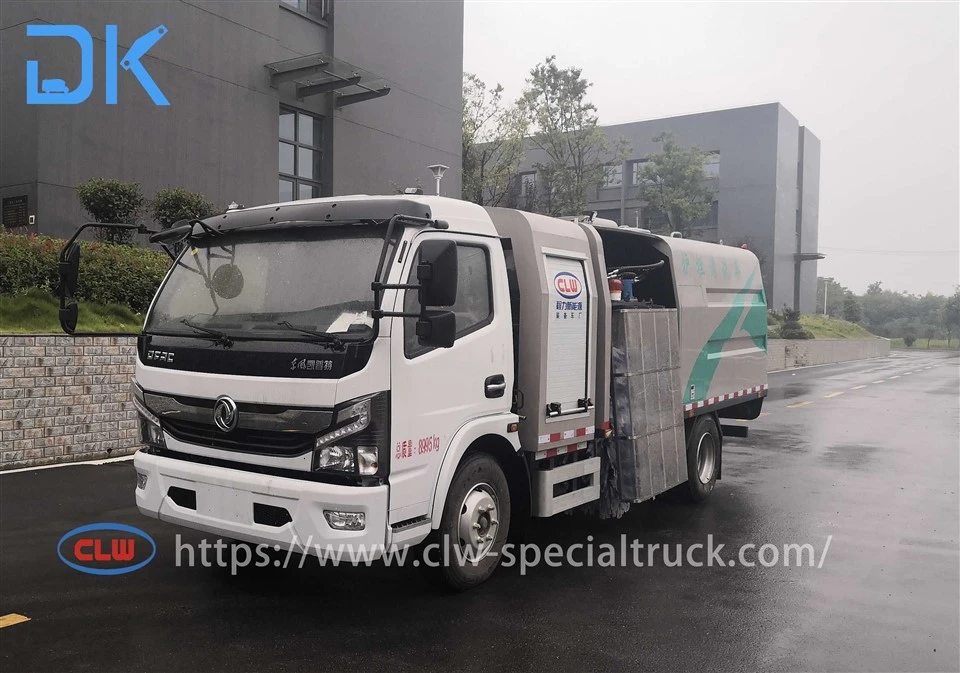

9- nyhav ib tawj guardrail Ntxuav tsheb yiwei truck
{{0 {}} tuj Dongfeng Electric Elecom:
1.Techical Hightlights:
Ntau yam kev ua tau: Lub tsheb muajIb thaj ntau txog li 320 mais ntawm ib qho kev them nqi tas li ntawm 40 km / teev nrog tag nrho cov sijhawm ua haujlwm ntev thiab nquag ncig ua haujlwm.
Kev them nyiaj ceev ceev: ib qho tsuas yog 30 feeb ntawm kev them yuav rov qab 80% ntawm lub roj teeb tus nqi,Ua kom ntseeg tau tsawg kawg.Qhov cov txiaj ntsig zoo ntawm cov peev txheej siab tau txais kev them nqi sai, uas tsis yog tsuas yog ua haujlwm zoo dua, tab sis kuj tseemlub sij hawm-rhiab.
Kev nrawm ua tau: Nws tuaj yeemleeb los ntawm 0} rau 50 km / h hauv 12 vib nas this lossis tsawg dua, Txawm tias muaj tag nrho cov kev thauj khoom, muab lub peev xwm nrawm nrawm.
Braking kev ua tau zoo: nrog ib tug braking nrug ntawm 8.5 metres ntawm tag nrho thauj thiab ua kom pom kev ua kom ceev ntawm 30 km / h,Lub tsheb siv kom muaj kev nyab xeeb ntawm txoj kev.
2.Power System
Roj teeb hom: Lub tsheb siv alithium iron phosphateRoj teeb, paub txog nws lub neej ntev dua thiab kev nyab xeeb siab.
Hluav Taws Xob Tsav: Nws yog nruab nrogHluav Taws Xob Tsav Systemuas muab lub zog txaus rau cov haujlwm ua haujlwm ib txwm, thaumensuring xoom emissions thiab suab nrov tsawg, sib ntsib niaj hnub no ib puag ncig cov qauv.
Cov tsheb tsis muaj tsheb
| Yam | Chaw ua uas tsis tau haus |
|---|---|
| Tus qauv | 9T Dongfeng Hluav Taws Xob Tsheb Chassis |
| Chassis Qhov Ntev | 6238, 6738 * 2150 * 2360 (L * W * H) |
| Lub laub | 3300, 3800 |
| Pem hauv ntej / sab nraub qaum | 1123/1815 |
| Pem hauv ntej / nram qab | 1760/1630 |
| Nchav hnyav | 3700 kg |
| Tag nrho cov tsheb hnyav | 8995 kg |
| Max Ceev | 90 km / h |
| Qho deb | 320 KM |
| Them Sij Hawm | 30 feeb |
| 0-50 km / h nrawm | Tsawg dua los yog sib luag rau 12 vib nas this |
| Braking deb | Tsawg dua los yog sib luag rau 8.5 meters |
| Kev Txiav Txim Siab Qhov Nruab Nrab | Ntau dua los yog sib npaug rau 6 m / s² |
| Chaw nres tsheb nres Gradient | Ntau dua los yog sib npaug rau 18% |
9 TONS Electric Chassis:
Lub cev nta nta:
1. ASPECIANED TU KUA LUAM,Yiwei 9 Tons Hluav Taws Xob Chassis Ntxuav TshebTsim tshwj xeeb rauTxoj Kev Teeb Meem, lub tsheb yog nruab nrog:
A Lub Dej Loj Muaj Peev Dej Loj
Tig mus cheb txhuam
Kev kub siab ntxuav Nozzles
Cov tshuab no ua haujlwm hauv tandem los ntawm kev tshaj lijElectro-Hydraulic Kev Sib Tw, siv kev tswj xyuas kev tswj hwm ntawm cov tshuab hluav taws xob, hluav taws xob, thiab hydraulic cheebtsam. Qhov no ua kom pom tseebsib sib zog nqus, txuag, thiab tu tas li, txawm tias nyob hauv nroog xav tau.
2. Cov haujlwm ua haujlwm ntse
Txhawm rau txhim kho kev yooj yim siv thiab ua haujlwm ua haujlwm, lub tsheb muaj cov khoom sib txuam nrog:
Touchscreen zaub
Onboard maub los
Wireless Chaw Taws Teeb Tswj
No"Cov zaub + maub los yog qhov chaw taws teeb"Teeb tsa cov neeg ua haujlwm los tswj cov txheej txheem ntxuav los ntawm sab hauv lub cab lossis remotely, kom ntseeg tauYooj taus, kev nyab xeeb, thiab cov neeg siv kev ua haujlwm zoo.
3. Kev ua haujlwm siab-ua tau zoo hluav taws xob chassis
Ua rau Dongfeng 9- tuj TUJ CHASSIS CHASSIS, lub tsheb muaj:
8995 kg GVW, enabling hnyav-ua hauj lwm ua hauj lwm
320 KM ntau yamNtawm 40 km / h tag nrho thauj ceev ceev, zoo tagnrho rau cov haujlwm hauv nroog muaj hnub nyoog puv ntoob
Ceev ceev them(30 min rau 20% -90% soc)
{{0 {}}} - 50 km / hedceation tsawg dua los yog sib npaug rau 12s, txawm tias thaum thau khoom
Cov tsis muaj:
Txheej Txheem Txheej txheem cej luam thiab kev teeb tsa ntawm 9-} Tuj Hluav Taws Xob Cov Hluav Taws Xob Tu Lub Tsheb Tu
| Txoj hau kev | Yam | Kev qhia tshwj xeeb |
|---|---|---|
| TSHEB MODEL | Tus qauv | {{0 {}} tuj ton nruab nrab-lub zog hluav taws xob chassis |
| Lub tsev ntoo | Lub tsev tua kab hom | Dongfeng Caput K series |
| Lub rooj zaum zaum | 3 tus neeg | |
| Lub cev muaj zog hluav taws xob | Ntaus | Daim Ntawv Hlau Magnet Synchronous (PMSM) |
| Rated / Peak Zog (KW) | 80 / 145 | |
| Rated / ncov torque (nm) | 611 / 1800 | |
| Nyob / Peak Ceev (RPM) | 1250 / 3500 | |
| Cua txias txoj kev | Dej Txias | |
| Cua txias txoj kev | Dej Txias | |
| Roj Teeb Muaj Peev Xwm | 144. {{{{1} kwh | |
| Hom xov tooj | Lithium Iron phosphate (LIFEPOON) | |
| Kev Tswj Cov Thermal | Ptc cua sov | |
| CHASSIS SYSTEM | Ncej tshooj qhov ntev (hli) | 192 × 65 |
| Ncej Qhov dav | 800 hli | |
| Pem Hauv Ntej Nplooj Hlav | 8- nplooj | |
| Tsheb Caij Nplooj Hlav | 10+7- nplooj | |
| Kev chim siab | Hom Yeem Lub Tog Raj Kheej | |
| Pem hauv ntej qag | 3t i-nqaj pem hauv ntej qag | |
| Tsheb Qij | 6.5t Steeled Welded Sib Koom Tes Qag | |
| Thaum kawg Driver | 5.29 | |
| TSHEB LOG NTAUB | 8.25r16LT 14pr lossis 9.5r17. {{{{}} Pr | |
| Steering iav hom | Mechanical Recirculating Pob | |
| Lub Hwj Chim Kauj Ruam | Electro-Hydraulic Pab | |
| Nres Ntaus | Cua nres | |
| Kev Pabcuam Brakes | Nruas Brakes | |
| Nres nres | Lub Caij Nplooj Ntoos Hlav Cia Khoom | |
| Ua haujlwm nta | Cua Txias | Ib Leeg-Txias A / C + PTC Rhaub |
| Kev Nyab Xeeb | ABS (anti-xauv braking system) | |
| Ntxiv nta | T-Box (Cov ntaub ntawv sau Terminal), LCD tuaj yeem ntsuas pawg |
Tsheb Saib:
 |
 |
Cim npe nrov: 9- nyhav ib tawj guardrail, chaw tsim hluav taws xob, chaw tsim hluav taws xob, Hoobkas, pheej yig, nqe
