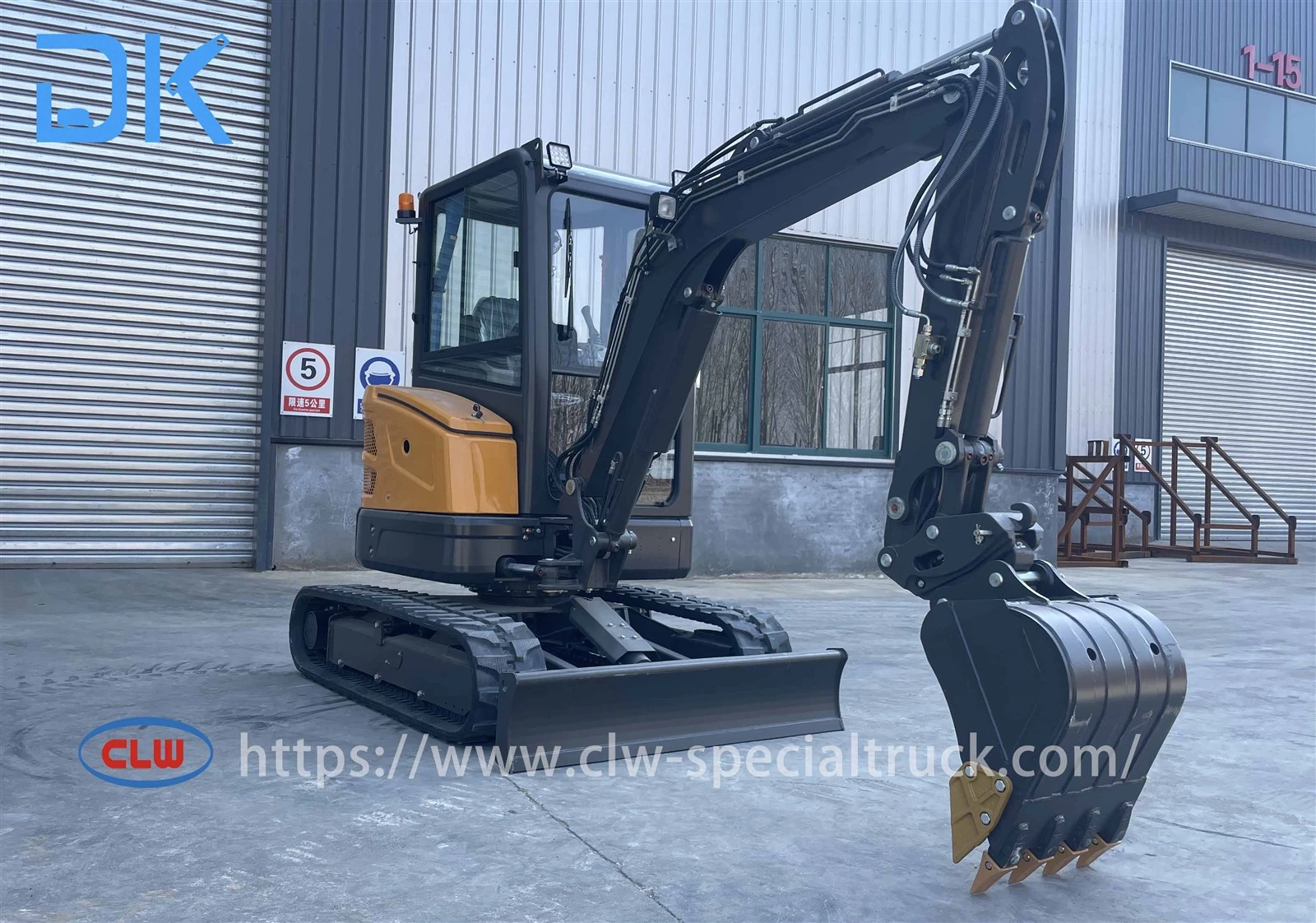

2.7 tons crawler excavator cl 2.27 craweler excavator

Cov Ntsiab & Nta:

Siab Excavation Peev:

Lub tshuab muaj lub zog khawb quab yuam, nrog aMax. Thoob Digging Force ntawm 23.5 Kn, ua rau nws haum rau hnyav - diab eurymoving cov haujlwm.

Nws tseem muaj aMax. Caj npab khawb lub zog ntawm 14 kn, uas yuav pab txhawb nws qhov tob thiab ruaj khov thaum lub sijhawm ua haujlwm.

Kev Ua Haujlwm Zoo:

TusMax. Kev khawb qhov siab yog 4427 hli, ua rau nws haum rau high - kev ua haujlwm qib, xws li ua haujlwm ntawm cov tsev siab lossis cov qauv.

TusMax. pov tseg qhov siab yog 3005 hli, ua kom muaj kev tiv thaiv ua tau zoo ntawm cov haujlwm siab dua.

TusMax. Kev khawb qhov tob yog 2830 hlithiabMax. Ntsug khawb qhov tob yog 2500 hli, Muab cov peev xwm muaj zog rau kev ua haujlwm thoob ntiaj teb.

TusMax. Khawb lub vojvoog yog 4835 hliThiab tusmin. Viav Vias Radius yog 2160 hli, muab kev yoog tau zoo thiab kev yoog raws rau ntau yam kev ua haujlwm.

Zoo mus muaj peev xwm thiab yoog tau:

TusViav Vias Ceev Ntawm 1-10 Rpmua kom muaj kev siab zoo thaum ua haujlwm.

TusYam tsawg kawg nkaus hauv av clearance yog 285 hli, ua rau nws yoog rau ntau yam xwm txheej nyuaj, suav nrog cov chaw tsis sib xws los yog cov chaw tsis sib xws.

Tustus tw viav vias hluav taws xob ntawm 860 hliPab kom tsis txhob muaj kev sib tsoo nrog lwm cov cuab yeej lossis cov nyom, ua haujlwm ruaj ntseg kev nyab xeeb.

Lub Cav Hluav Taws Xob thiab Lub Zog Hluav Taws Xob:

Powered byD1105-E4B Cav, muab14 kw ntawm lub hwj chim, haum rau high - phoo ua hauj lwm ib puag ncig thiab muab cov roj ua tau zoo.

Qhov Txheej Txheem Siab:

TusLub zog siab yog 20.5 MPA, muab cov haib txhawb nqa hydraulic uas txhim kho lub tshuab ua haujlwm ua haujlwm thiab kev ntseeg tau.

Cog Lus Tsim:

TusTshuab loj (L x W x H)yog4195 x 1550 x 2480 hli, muab tus qauv tsim qauv uas zoo tagnrho uas yog qhov zoo tagnrho rau kev ua haujlwm hauv qhov chaw tigg dua.





CL8027 EXCAVATOR PARAMETER:

Cov lus qhia	Cov ntsiab lus
Thoob muaj peev xwm (mp)	0.1
Viav Vias Ceev (RPM)	1–10
Kev Ntseeg (Degree)	58
Max. Thoob Kev Siv Lub Zog (KN)	23.5
Max. Caj npab khawb quab yuam (kn)	14
Tus qauv cav	D1105-E4B
Lub Hwj Chim / Hloov Tawm Ceev (Kw / RPM)	14/2000
Log Qauv	-
Txheej Txheem Siab (Mpa)	20.5



Tshuab Loj:

| Qhov loj me (hli) (L x W x h) | 4195 x 1550 x 2480 |
| Lub Cab Hniav Qhov Siab (MM) | 2480 |
| Qag puag (hli) | 1550 |
| Log (khiav) nrug (hli) | 1250 |
| Qhov tsawg kawg hauv av cantance (hli) | 285 |
| TAIL VIAV ROUNTIUS (HLI) | 860 |

Ua Haujlwm Ntau Yam:

| Max. Kev khawb qhov siab (hli) | 4427 |
| Max. Pov tseg qhov siab (hli) | 3005 |
| Max. Kev khawb qhov tob (mm) | 2830 |
| Max. Ntsug khawb qhov tob (mm) | 2500 |
| Max. Khawb hluav taws xob (hli) | 4835 |
| Min. Viav vias Radius (hli) | 2160 |
| Max. Dozer hniav Lifting Deb Deb (MM) | 308 |
| Max. Dozer hniav txiav deb (hli) | 360 |
